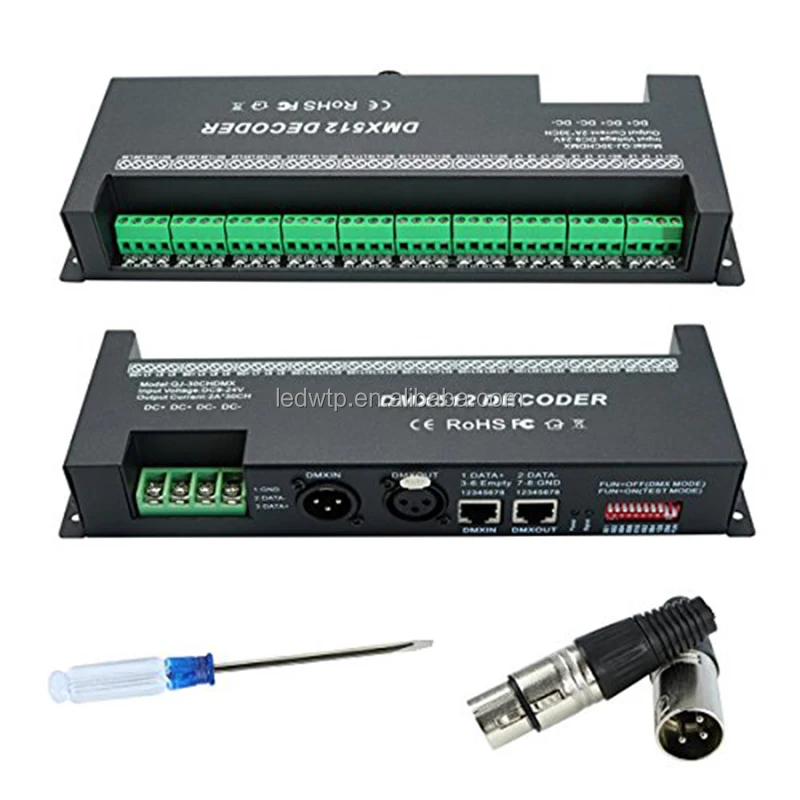

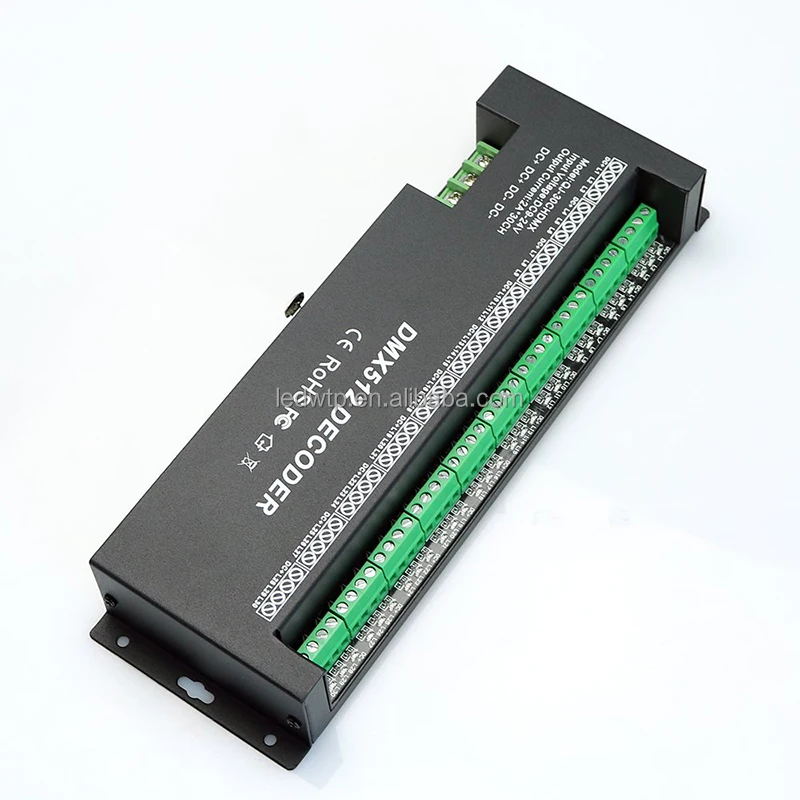

30 channels DMX512 Multi-channel decoder 30x2A 12V 24V led rgb rgbw Strip dmx512 dmx decoder
Product details
international to the analog control signal. 1~24 channels output for option and each channel able to achieve 256 gradations of
controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used
for the controlling of buildings & lights applied LED.
Technical Parameters
1. Work temperature: 0-60°C
2. Supply voltage: DC, +12~24V
3. External dimension: L268*W85*H45mm
4. Packing size: 350*180*65 mm
5. Net weight: 1.5kg
6. Gross weight: 1.6kg
7. Decoding channel: at most 30 channel
8. Connection mode: can choose common anode, common cathode
9. No-load current consumption: <0.25A(12V);<0.30A(24V)
10. Control signal input: DMX-512 standard digital control signals
11. Output signal:0~24V at most,3A isolation driver output
12. Output power:12V:<720W, 24V:<1440W
● Working temperature:-20-60°
● Supply voltage:DC12～24V
● Static power consumption:<1W
● Output current: each channel 2A
● Output power: 12V:<720W, 24V:<1440W
● DMX512standard:DMX512/1990
